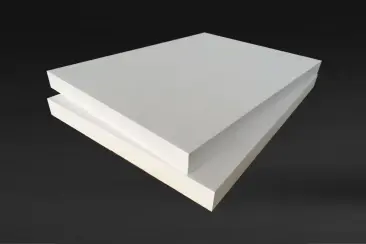

Ceramic Fiber Board
STD Ceramic fiber boards are rigid, high-temperature insulation materials made from alumina-silica fibers and binders. They provide excellent thermal resistance, mechanical strength, and low thermal conductivity, making them ideal for industrial applications.
Technical Characteristics:
- Board Dimensions: 1x0.60 m (0.6m2)
- Density: 300 Kg/m3
- Thermal Conductivity: 0.07 W/(mK)
- Temperature Classification: 1260 °C
- Facing: Unfaced
- Available thickness: 25mm Ask for other thickness.

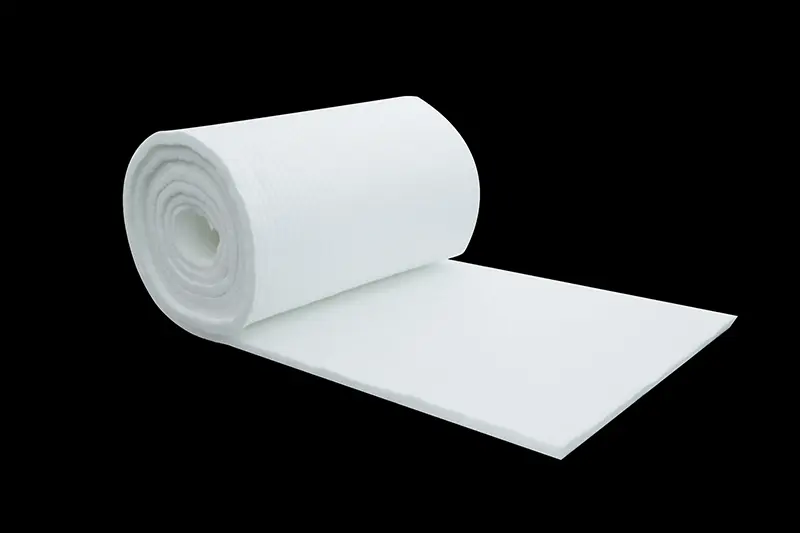

Ceramic Fiber Blanket
Ceramic fiber blankets are lightweight, high-temperature insulation materials made from alumina-silicate fibers.
Technical Characteristics:
- Blanket Dimensions: 7.32x0.61 m (4.46m2)
- Density: 128 Kg/m3
- Thermal Conductivity: 0.06 W/(mK)
- Temperature Classification: 1260 °C
- Facing: Unfaced
- Available thickness: 25mm Ask for other thickness.
Ceramic Fiber Tape
Ceramic fiber tape with aluminum facing is made from high-purity alumina-silica ceramic fiber yarn and is laminated on one side with a reflective aluminum foil layer. The aluminum foil enhances radiant heat resistance and adds a moisture/vapor barrier while maintaining the high-temperature performance of the ceramic fiber.
Technical Characteristics:
- Roll Dimensions: 30 x 0.10 m
- Density: 500 Kg/m3
- Thermal Conductivity: 0.07 W/(mK)
- Temperature Classification: 1260 °C
- Facing: Aluminum
- Available thickness: 160 Microns
- Thickness: 2 mm
